Description

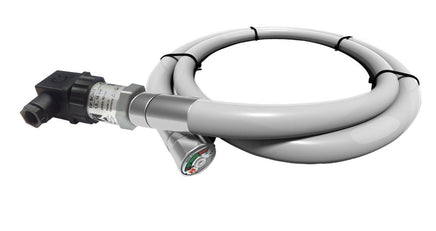

Blazecut T100ES Fire Suppression - T Series with Alarm Option - 3 Foot Length
The BlazeCut "T" series system provides simple, and cost-effective fire protection for small enclosures. Consisting of a heat sensitive tube made of special plastic and closed on each end by a stainless steel fitting, the BlazeCut system is designed to rupture and expel its extinguishing agent when temperatures inside of the protected enclosure rise above a critical threshold.
This unit is IP rated(weatherproof), vibration resistant and heavier duty. It has a single throw, two pole switch. That gives you one N/O and one N/C contact. The wiring is under a cap on the switch, and the wires are attached with screw terminals. Vehicles, mobile applications, any exposure to weather, harsher environments, or any applications where you need a N/C contact under pressure.
HOW DOES IT WORK?
The BlazeCut T-Series Fire Suppression Device consists of three parts, a heat-sensitive tube made of special plastic, Stainless Steel fittings which are used to close off each end, and pressurized extinguishing agent which is stored inside of the tube. The specialized plastic is designed to detect and rupture when the temperature inside of the enclosure rises above critical (120°C), at which point, the tube will rupture at a single point and release the entire extinguishing agent onto the source of the fire.
This product utilizes HFC-227ea clean extinguishing agent, which is an extremely effective, clean, and people-safe extinguishing medium. The unique properties of this agent paired together with the easy to install, and the non-power supply dependent hardware the T-series easily makes this device one of the best and most universally useful fire suppression solutions for small printer enclosures.
Note: It is essential to size your BlazeCut T-series appropriately for the space to be adequately protected. This BlazeCut TD100EA can protect an enclosed area up to 0.25 cubic meters.
PROTECTION FOR SENSITIVE ELECTRICAL DEVICES
The BlazeCut Fire Suppression System utilizes HFC-227ea, which is an extremely effective, clean, and people-safe extinguishing medium. The HFC clean extinguishing agent contained inside of BlazeCut T-Series leaves no residue, does not conduct electricity, corrode, or cause shock damage to electrical appliances making it the ideal choice for sensitive devices.
ADDITIONAL DETAILS:
- Tube Length: 3.2 Feet
- Extinguishing Agent .55lbs
- A, B, C, and live electrical equipment rated.
- UL recognized and FM approved.
- 16.24 Cubic Feet Electrical
- 12.36 Cubic Feet Engine
ABOUT THE MANUFACTURER
BlazeCut USA is a leading automatic fire suppression system company, known globally for delivering top-performing fire suppression systems. All systems are manufactured to improve fire system response time and to maximize the protection of customers and their assets in all types of environments. Products are tested at their in-house testing facilities in addition to being tested at accredited testing institutes. BlazeCut is a proud member of the NFPA (National Fire Protection Association).
